3. Installing The VFD Support

Step #06

Tools needed

Drill >30mm

Instructions

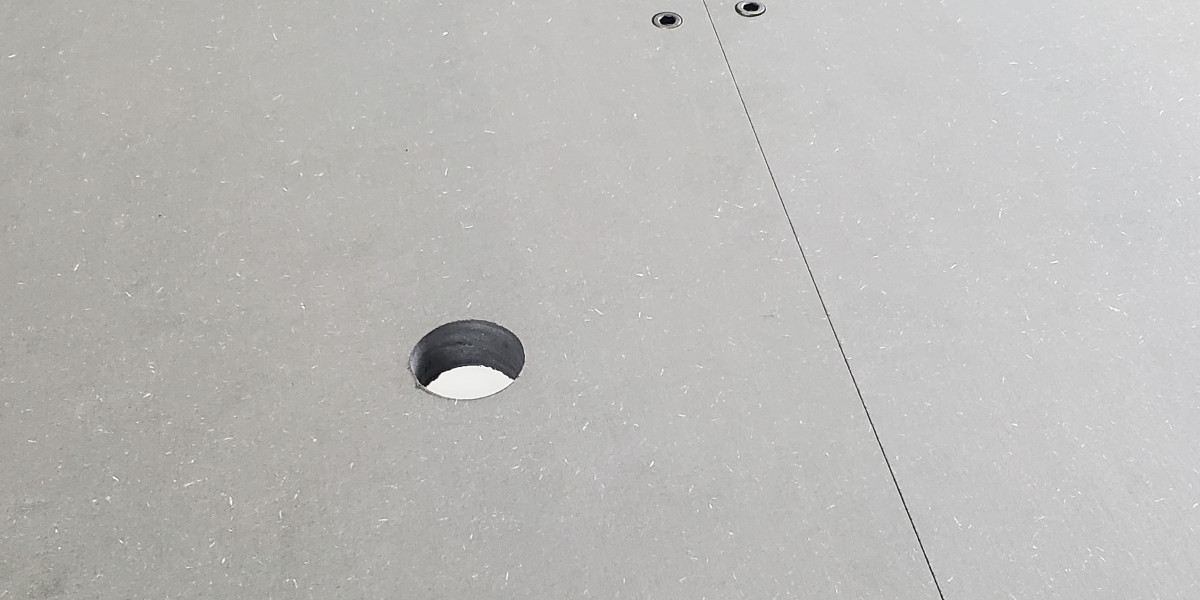

  1. Drill a 30mm hole (or bigger) in the worktable in order to connect the VFD cables.

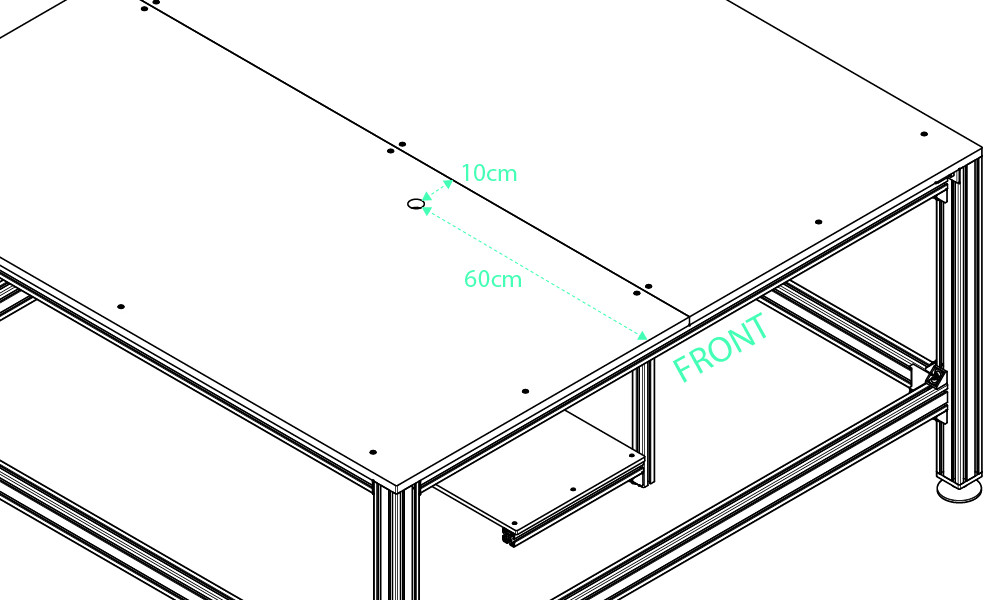

    1. Refer to the drawing below to know exactly where you have to drill the hole.

      Animation

      Make sure you are not above the crosswise profile before drilling the hole
