3. Installing The VFD Support

Step #05

List of Components

ItemSpecQty
 DIN912 ScrewM4x106
 Sliding nutM46
 Table topMDF1

Tools needed

Allen Key 3mm

Instructions

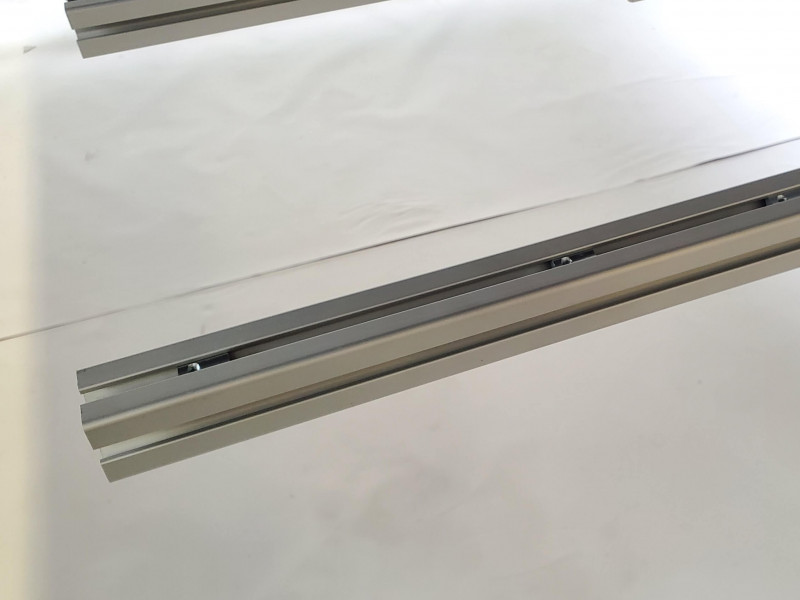

  1. Insert 3 sliding nut in each profile.

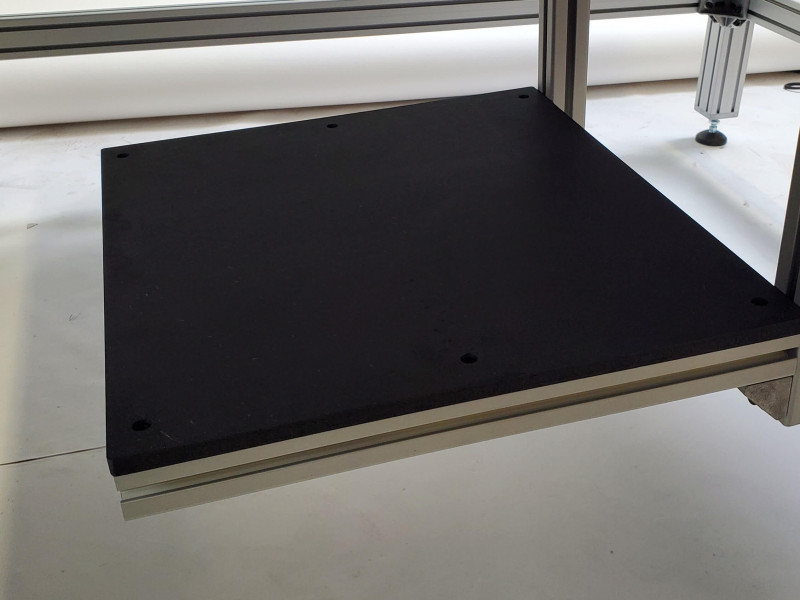

    1. Use the MDF specific part as a guide to correctly position the sliding nuts.

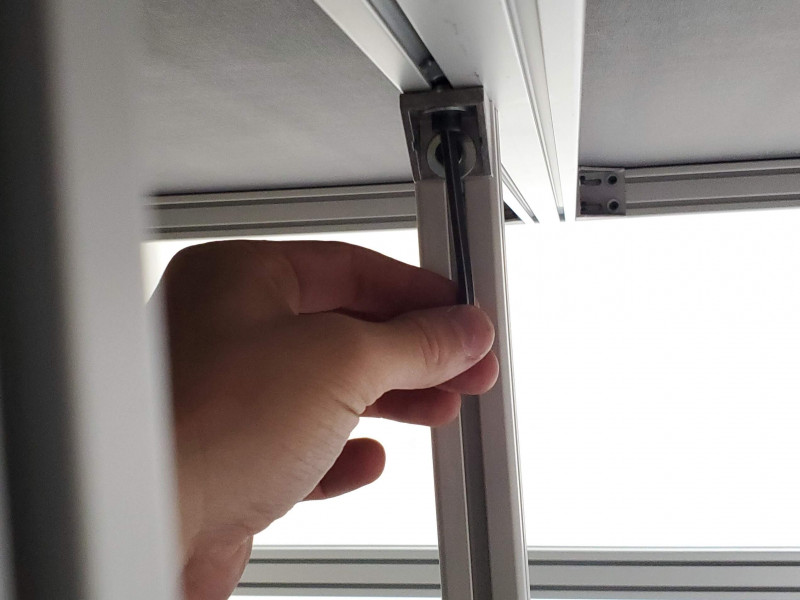

      1. Once they are all aligned with the holes of the MDF board, use the screws to tighten it.
        1. Fully tighten the M6 screws that attach the support to the table.

          Animation

          Make sure the 6 holes are aligned with the sliding nuts before tightening the first screw
