3. Installing the VFD Support

Step #01

List of Components

Item		Spec	Qty
	Aluminium profile 3030	330mm	2
	Angle bracket	3030	4
	DIN912 Screw	M6x16	4
	DIN9021 Washer	M6	4
	Sliding nut	M6	4

Tools needed

Allen Key 5mm

Instructions

Install the brackets as shown.

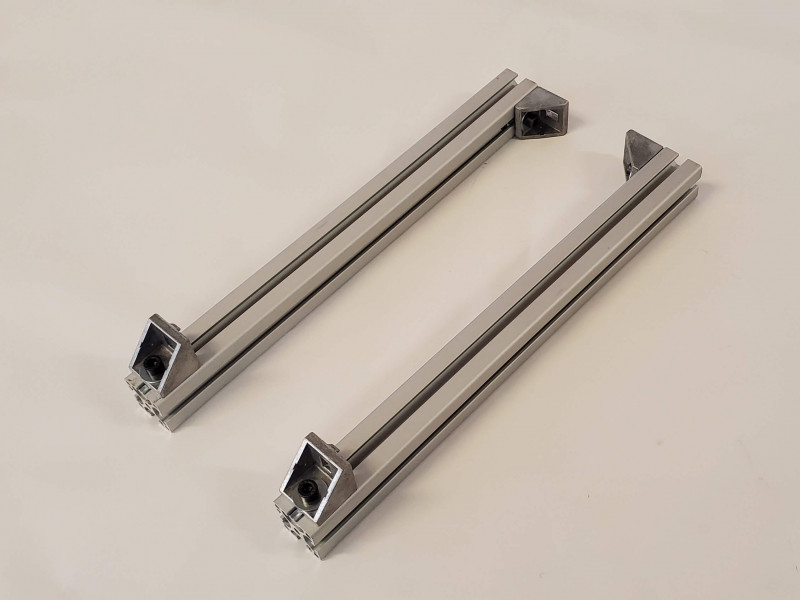

Repeat this assembly as a MIRROR (see the photo below).

Animation

Make sure you have assembled mirrored assembly
