3. Installing the VFD Support

Step #02

List of Components

ItemSpecQty
 Aluminium profile 3030330mm2
 DIN912 ScrewM6x162
 DIN9021 WasherM62
 Sliding nutM62

Tools needed

Allen Key 5mm

Instructions

  1. Place the sliding nut in the profile as shown.
    1. Fix the profile with the screw and the washer.

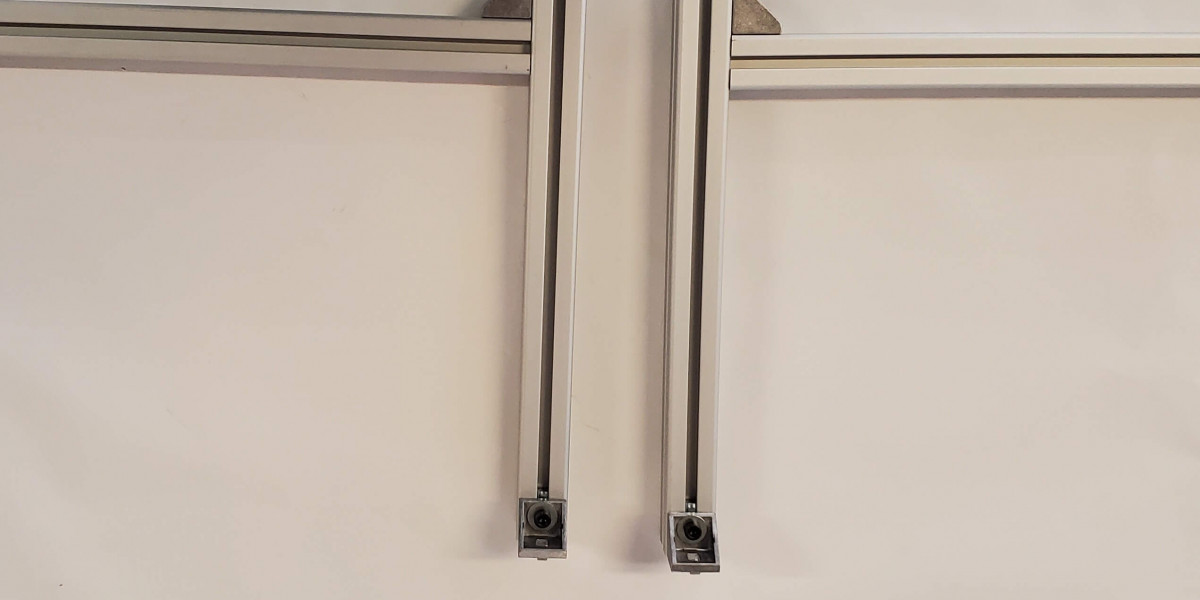

      1. Repeat this assembly as a MIRROR (see the photo below).

        Animation

        Make sure you have assembled mirrored assembly
