10. Expandable Touch Interface

Step #05 - Cable Management

List of Components

ItemSpecQty
 HDMI cable3m1
 USB extension, panel mount3m1
 USB cable3m1
 Cable sleeve1m2
 ISO7380 screwM3x102

Tools Needed

-

Instructions

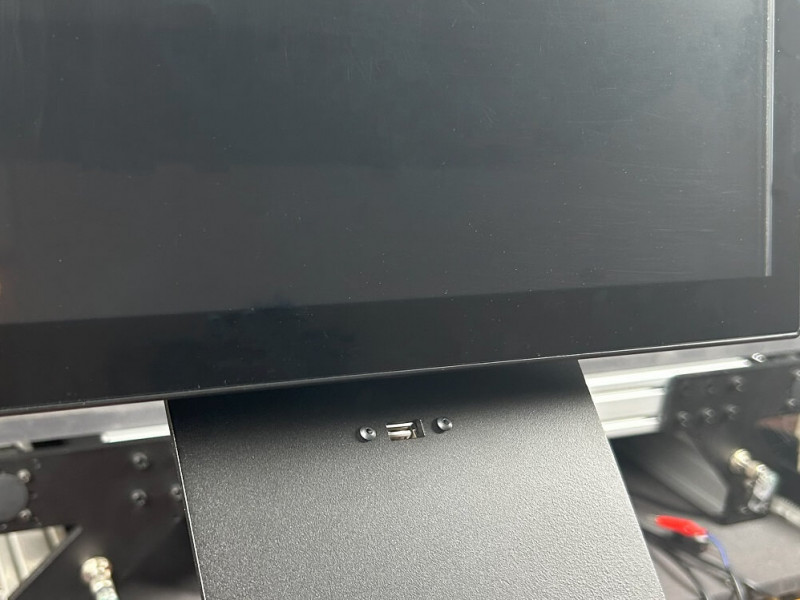

  1. Attach the USB-A panel mount extension cable to the keypad support plate, using the 2 M3x10 screws.

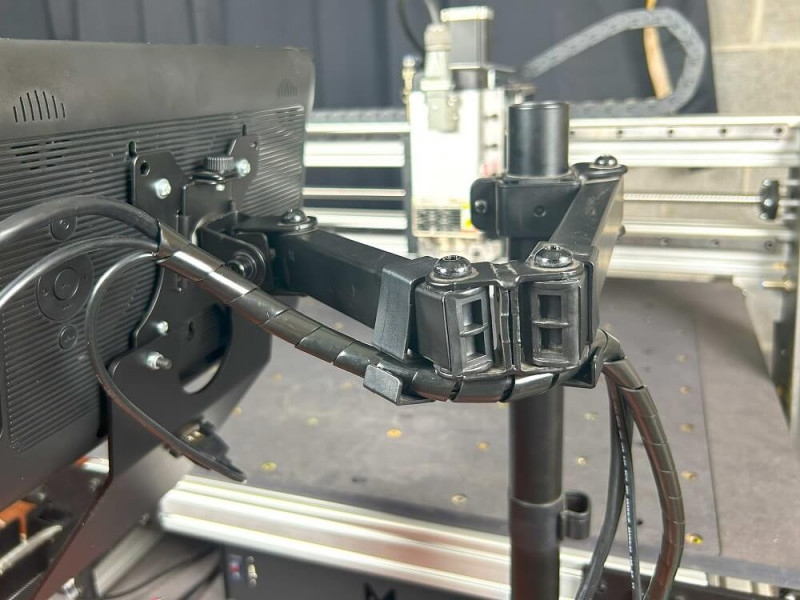

    1. Bundle the following cables together into the cable spirals: HDMI, USB extension, micro-USB and power cable. Leave about 10cm out of the spiral to be able to connect them to the screen.
      1. Connect the cables to the machine control unit.
        1. Plug in the touchscreen power supply.
