10. Expandable Touch Interface

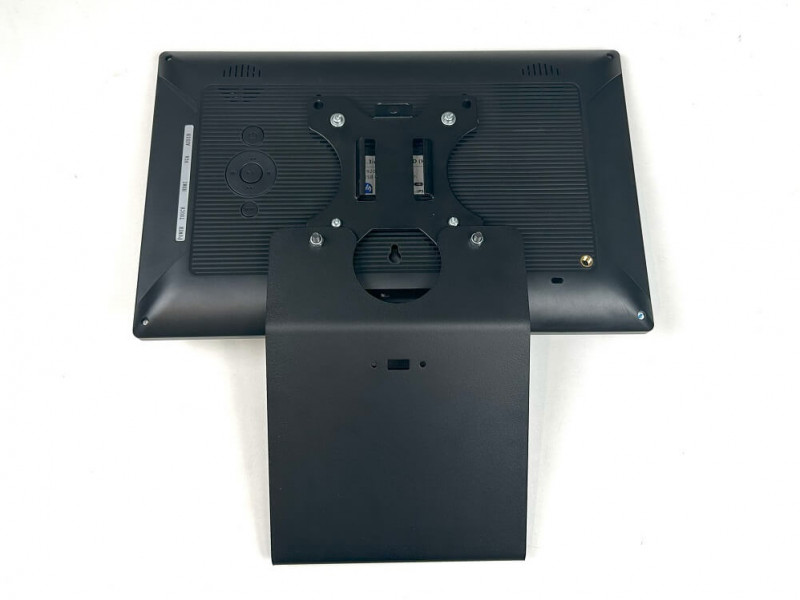

Step #03 - Fixing the Monitor to the Screen Plate

List of Components

ItemSpecQty
 Monitor13.3"1

Tools needed

-

Instructions

  1. For this step, please refer to the assembly manual of the monitor arm, which is printed and located inside the box. You can also click on the image below to display the online pdf.

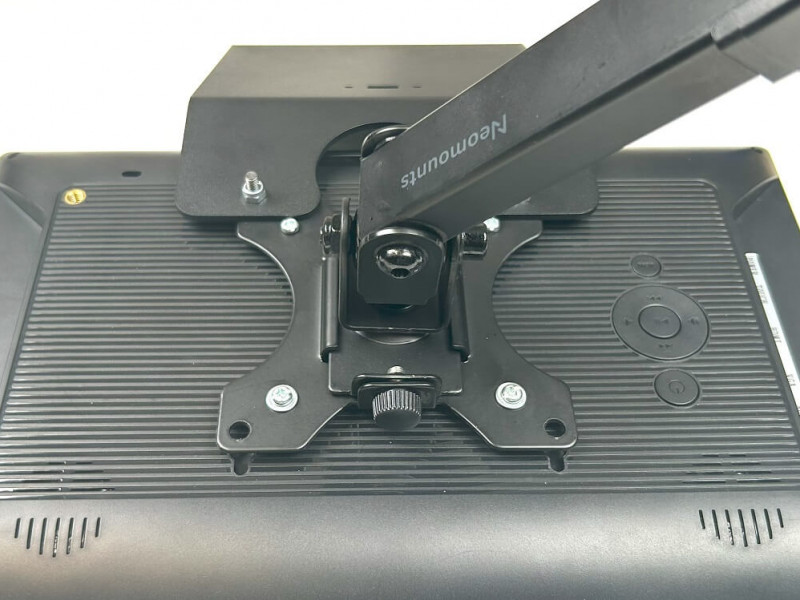

    1. You will have to assemble the monitor arm and attach it to the screen.
      1. All the necessary screws and spacers are located inside the monitor arm box.
