10. Expandable Touch Interface

Step #02 - Fixing the Keypad Support

List of Components

ItemSpecQty
 ISO7830 screwM5x122
 LocknutM52
 Keypad supportSteel 3mm1
 Monitor mounting plateVESA1

Tools needed

Allen Key 3mm Spanner 8mm

Instructions

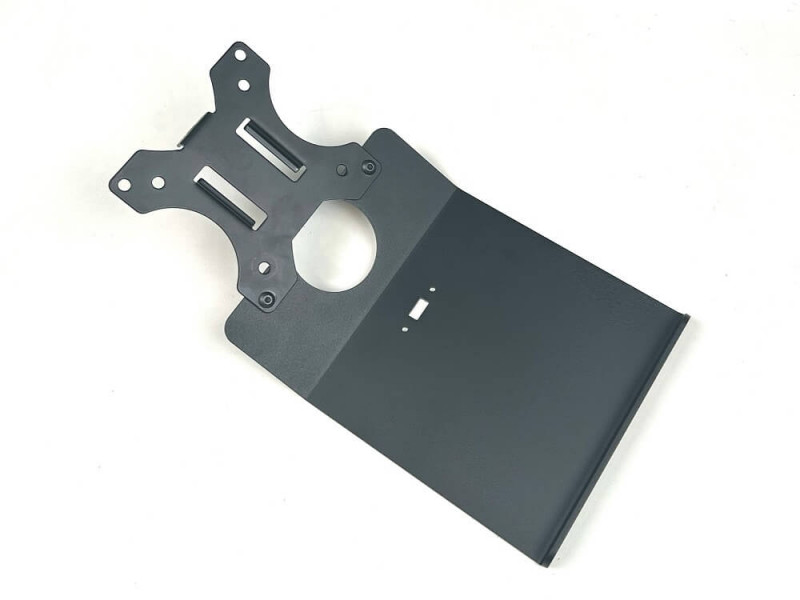

  1. Attach the keypad support to the VESA plate using the 2 screws and 2 locknuts.

    Animation

    Make sure that the screw heads are correctly oriented.
