2. Table assembly

Step #04 Assembling the Cable Chain Support

List of Components

ItemSpecQty
 Cable chain female end connector/1
 Cable chain support plateSteel1
 DIN 912 ScrewM4x122
 Lock NutM42

Tools needed

Allen Key 3mm Spanner 7mm

Instructions

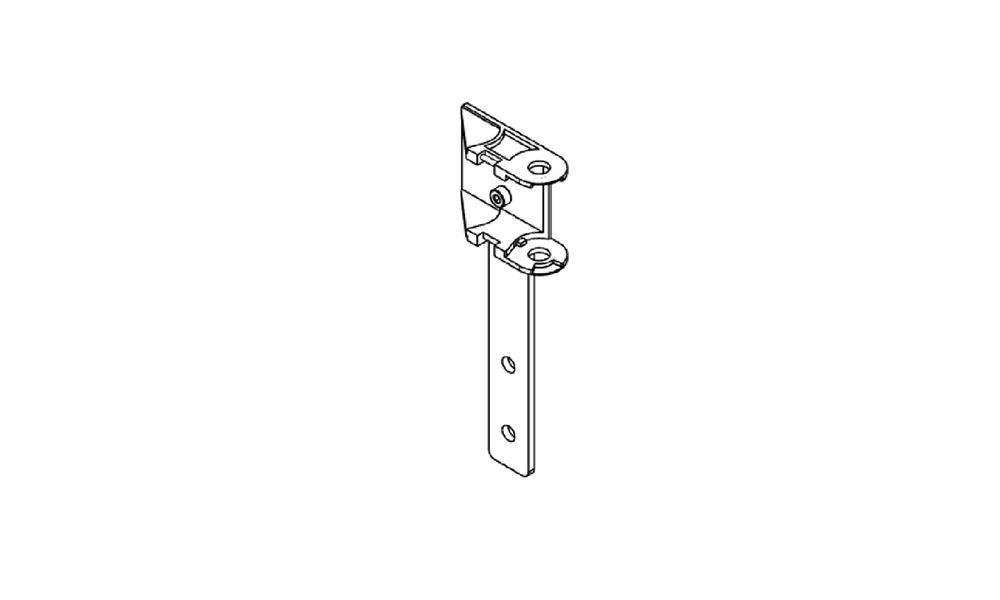

  1. Place the cable chain female end connector on the steel support as shown in the video.
    1. Insert the screws through.
      1. Secure & fasten the lock nuts.

        Animation
