0. Foreword & Tips

Assembly Guide Structure

This assembly guide is organised into several sections that have to be followed in numerical order. The same applies to the steps of each section. Please note that if two steps have the same number, you only need to complete one of them based on the add-ons you bought.

Before starting each step, make sure you have carefully read the written instructions and watched the animation entirely. This will prevent you from making small mistakes and get you to assemble your machine much faster.

Keep in mind that parts should easily fit together and do not require important force to assemble. If you feel it is the case, stop what you are doing and read again the instructions before trying one more time.

You will often see instruction notes such as this one. Read them carefully since they will remind you to check if certain parts are properly squared and aligned, or if they are correctly oriented.
If you see a red note such as this one, please read it very carefully. They will point your attention to an important feature of that assembly step.

Sliding Nuts

A quick note on this component that you will encounter very often during the assembly. A sliding nut is supposed to be inserted from the side of the aluminium profile slots and slid towards the desired position.

However, if at some point you realise that you forgot to insert one - and that you can't access the side of the aluminium profile anymore - don't panic! No need to disassemble everything, this type of sliding nut has a ball spring and can also be inserted from any location on the aluminium profile.

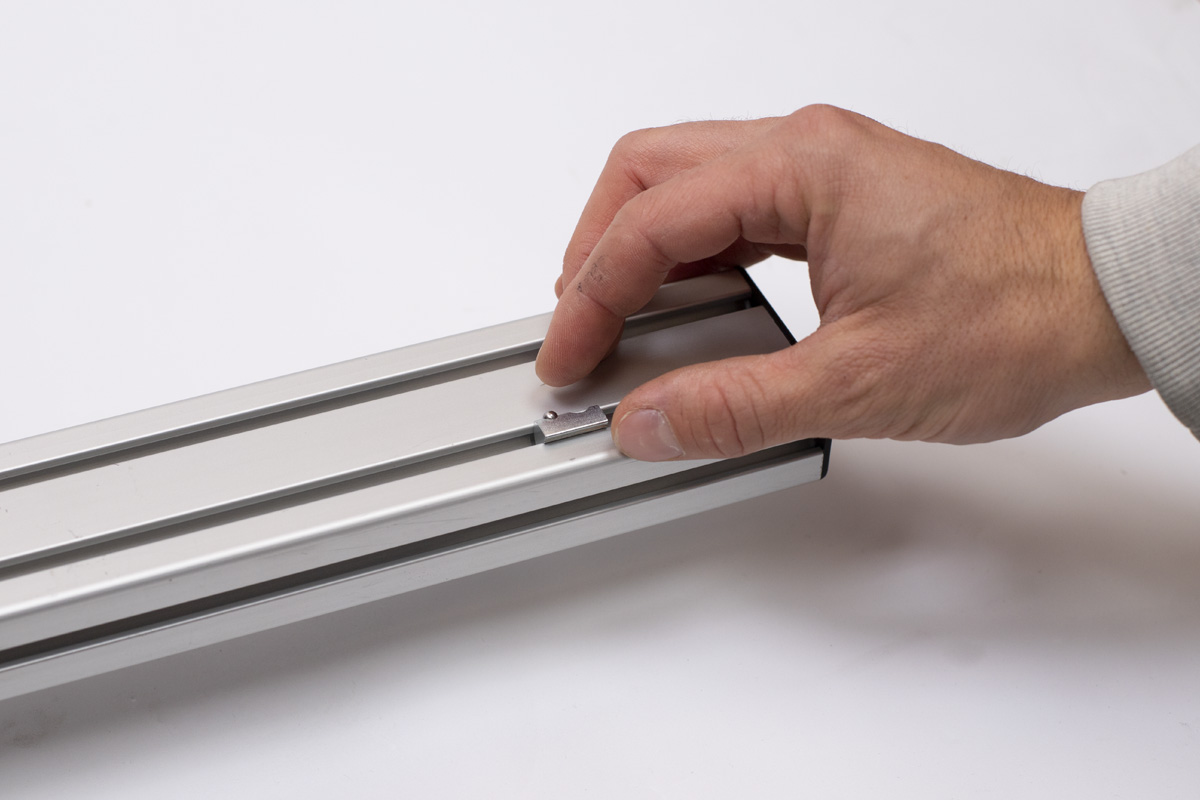

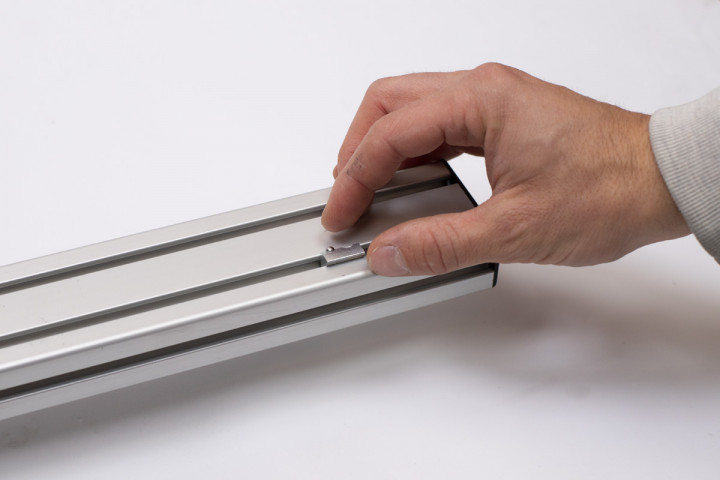

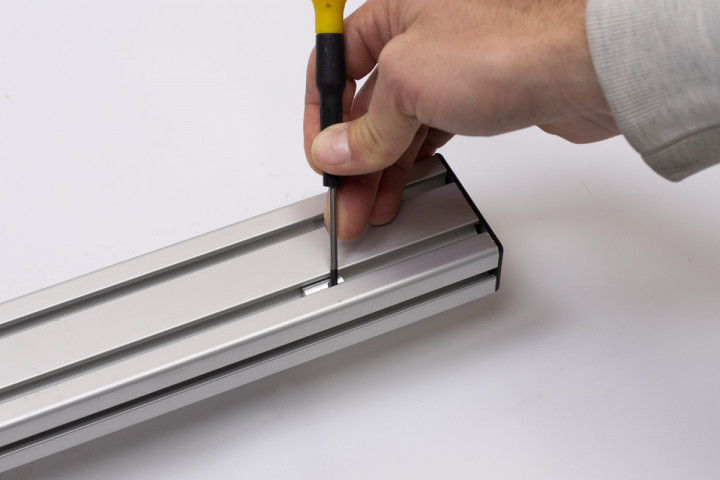

Simply place it on top of the profile's slot and use a thin hex key or screwdriver to turn it and lock it inside the slot.

Let's get started!
