0. Foreword & Tips

Assembly Guide Structure

This assembly guide is organised into several sections that have to be followed in numerical order. The same applies to the steps of each section. Please note that if two steps have the same number, you only need to complete one of them based on the add-ons you bought.

Before starting each step, make sure you have carefully read the written instructions and watched the animation entirely. This will prevent you from making small mistakes and get you to assemble your machine much faster.

Keep in mind that parts should easily fit together and do not require important force to assemble. If you feel it is the case, stop what you are doing and read again the instructions before trying one more time.

You will often see instruction notes such as this one. Read them carefully since they will remind you to check if certain parts are properly squared and aligned, or if they are correctly oriented.
If you see a red note such as this one, please read it very carefully. They will point your attention to an important feature of that assembly step.

Tips

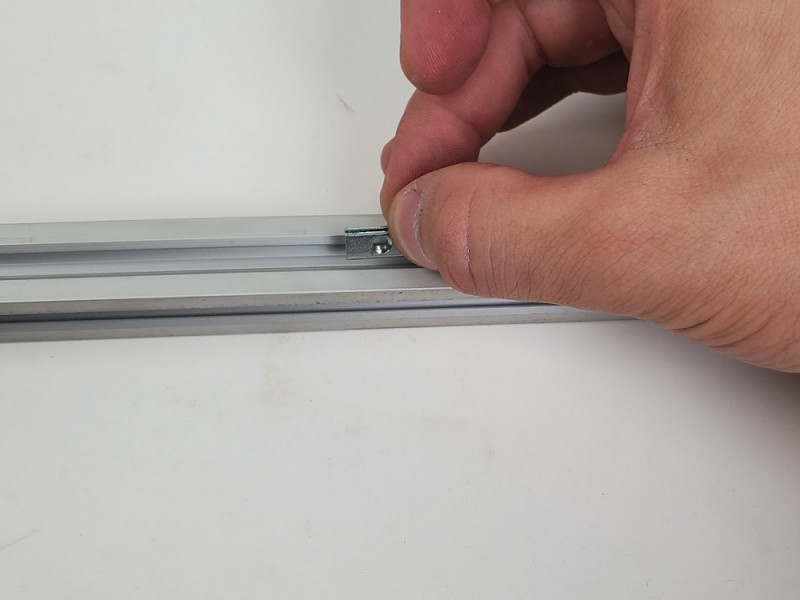

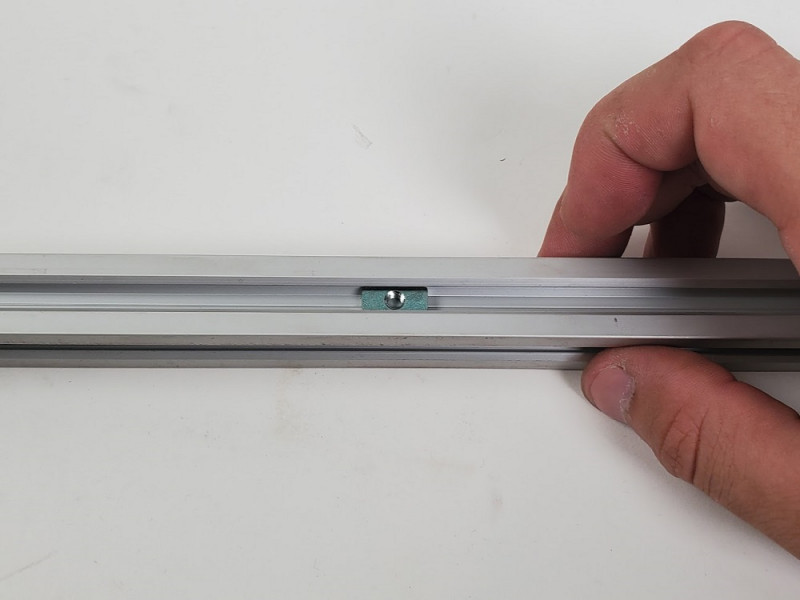

All along this assembly guide you will have to insert sliding nuts into aluminium profile'slots. If, for any reasons, you forgot to pre-install one of them, no need to dissasemble what you've done, you can still manually insert the nut into the slot.

Let's get started!
